In a previous blog post, we took a look at several key exchange protocols, including the classic Diffie-Hellman Key Exchange protocol, the station-to-station protocol, and Secure Remote Password. These protocols were generally tried and tested across decades, but their age also means that improvements accrued across the decades are not included in these legacy protocols. Thus the need for a modern, Augmented Password-Authenticated Key Exchange (aPAKE) protocol was born. One of these state-of-the-art aPAKE protocols is OPAQUE, first introduced in 2018 and formally specified in Request for Comments (RFC) 9807 in 2025. How does it work? Let’s find out!

Let’s recap on what SRP is trying to accomplish. Two friends, Alice and Bob, are talking to each other. Alice wants to send a message to Bob, but doesn’t want anyone else from reading it. Thus they would need to have a common key (a symmetric key) for encrypting and decrypting data. Alice would also want to verify that she is indeed talking to Bob and not someone else.

These two desiderata were achieved by the SRP protocol, which was first introduced in 1997. However, even the latest version, SRP-6a (as defined by RFC5054 in 2007), is not perfect.

• “Security Through Legacy”: In short, we assume that SRP is secure because we haven’t found anything wrong with it. SRP was developed in a time before Universal Composability became the norm, and so we haven’t truly analysed it under adversarial network conditions.
• Vulnerability to Server Compromise: Recall in SRP that a verifier value $v = g^x \mod p$ is stored on the server. In effect, this verifier value still acts as a ‘password’ of sorts; an attacker that has precomputed all possible values of $g^x \mod p$ can still recover the secret key $x$.
• Flexibility: SRP-6a is heavily tied to modular operations on integers and cannot harness modern developments such as elliptic curve technologies. In fact, if the Discrete Logarithm Problem (explained further below) is solved by a quantum computer, all Diffie-Hellman-related protocols (including SRP) would be trivially broken and no longer secure.

What we want for a modern aPAKE protocol is to address all of these concerns — where the protocol’s security has been rigorously examined and vetted, is resistant to attacks in case of a server compromise, and grants greater flexibility in its underlying operations in case a pivot to post-quantum cryptographic techniques is warranted.

The first thing that needs replacing within SRP is the key exchange mechanism. As previously mentioned, the SRP key exchange mechanism is derived from Diffie-Hellman Key Exchange (DHKE). The fundamental principle that DHKE relied on is the observation that

for certain structures, called groups. Traditional DHKE uses the multiplicative group of integers modulo $p$ as the underlying group, where $p$ is a prime, but the principle of DHKE extends beyond just numbers. All we need is a cyclic group, which is a group where all the elements are simply ‘exponents’¹ of (at least) one element $g$, called a generator. To put it more formally, for any cyclic group $G$, there is an element $g$ such that for any element in $G$, say $x$, we are able to find a corresponding integer $n$ such that $x = g^n$. Crucially, trying to reverse this process, i.e. to find $n$ given the group and $x$, is difficult. This is called the Discrete Logarithm Problem².

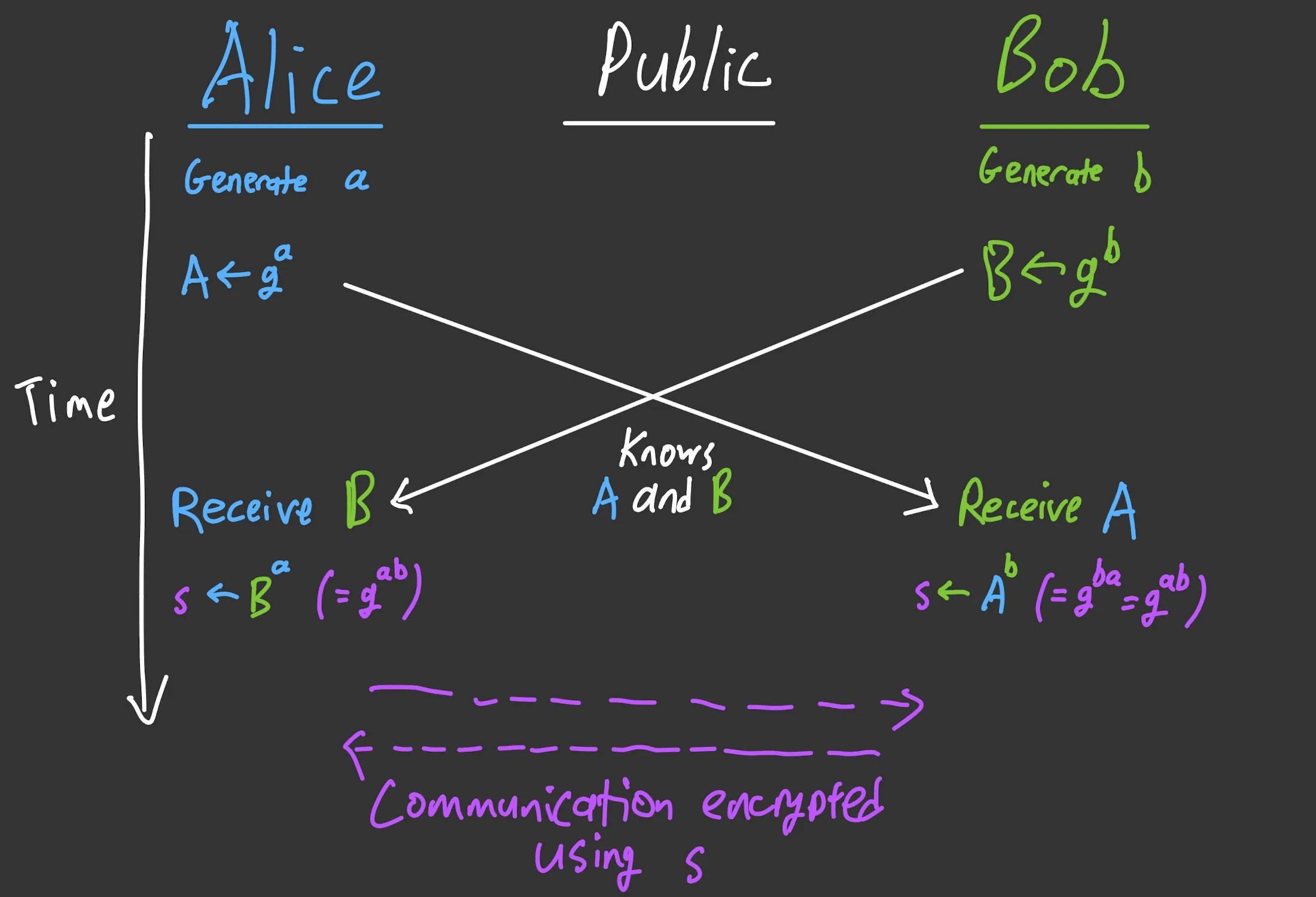

Now let us recall how DHKE works. Suppose Alice and Bob wants to derive a shared key. They first agree, publicly, on a cyclic group to use and a generator $g$.

1. Alice randomly chooses a positive integer $a$. Bob does the same, choosing $b$.
2. Alice computes $A = g^a$ and sends it to Bob over the public channel. Bob computes $B = g^b$ and sends it to Alice.
3. Alice computes $s = B^a$ and Bob computes $s = A^b$.

Observe that both Alice and Bob derive the same secret key $s$ at the end of the DHKE protocol. They can then use $s$ to encrypt messages between each other going forward. This is almost perfect, if not for the fact that a malicious actor (say, Mallory) could perform a man-in-the-middle (MiTM) attack and read the messages.

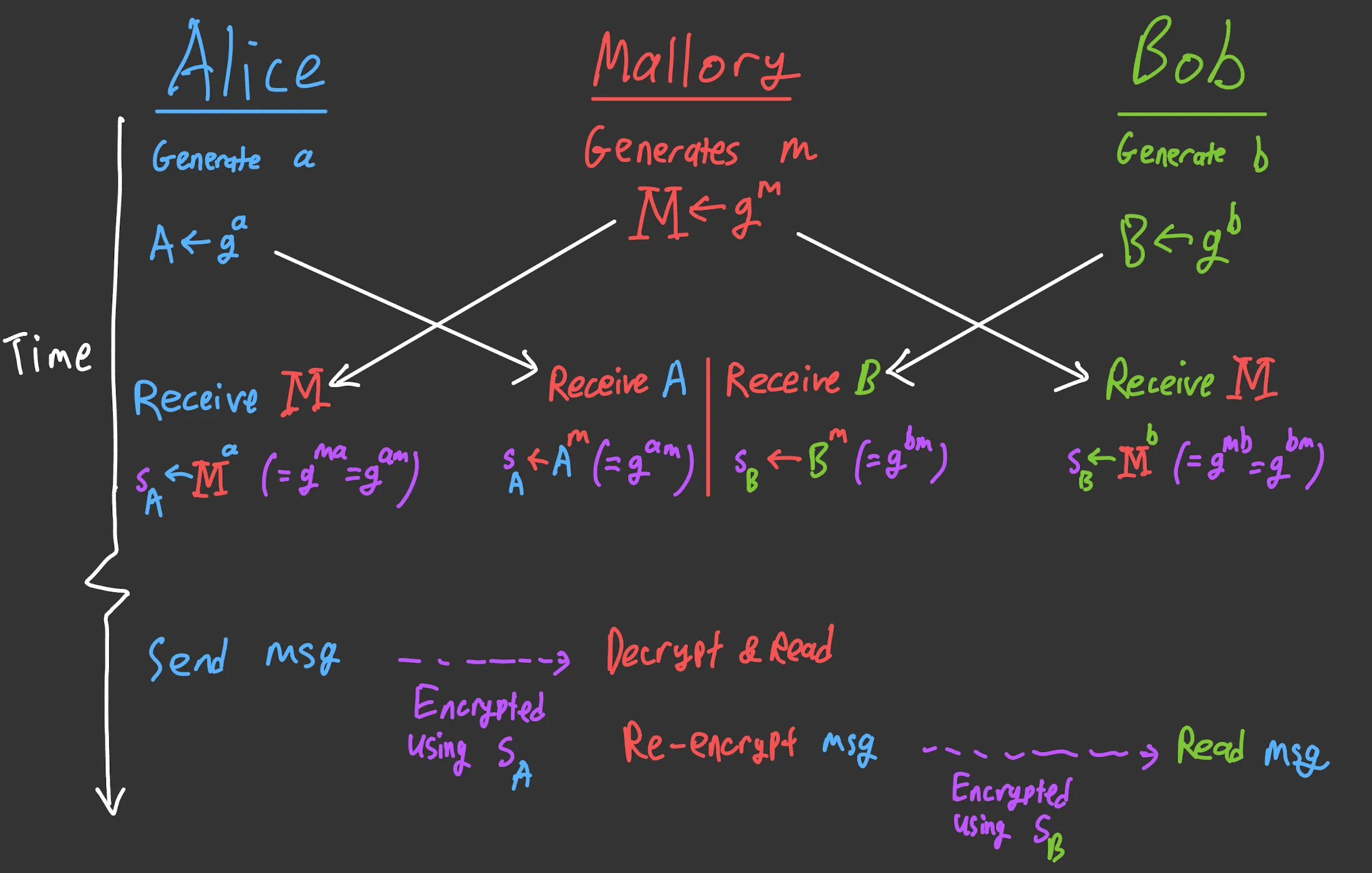

In this case, Mallory simply intercepts the key exchange messages of Alice and Bob and sets up two encrypted channels: one between Alice and Mallory and one between Mallory and Bob. To Alice and Bob, it would seem as though they are still communicating over an encrypted channel, but in reality their messages are being read by a third party.

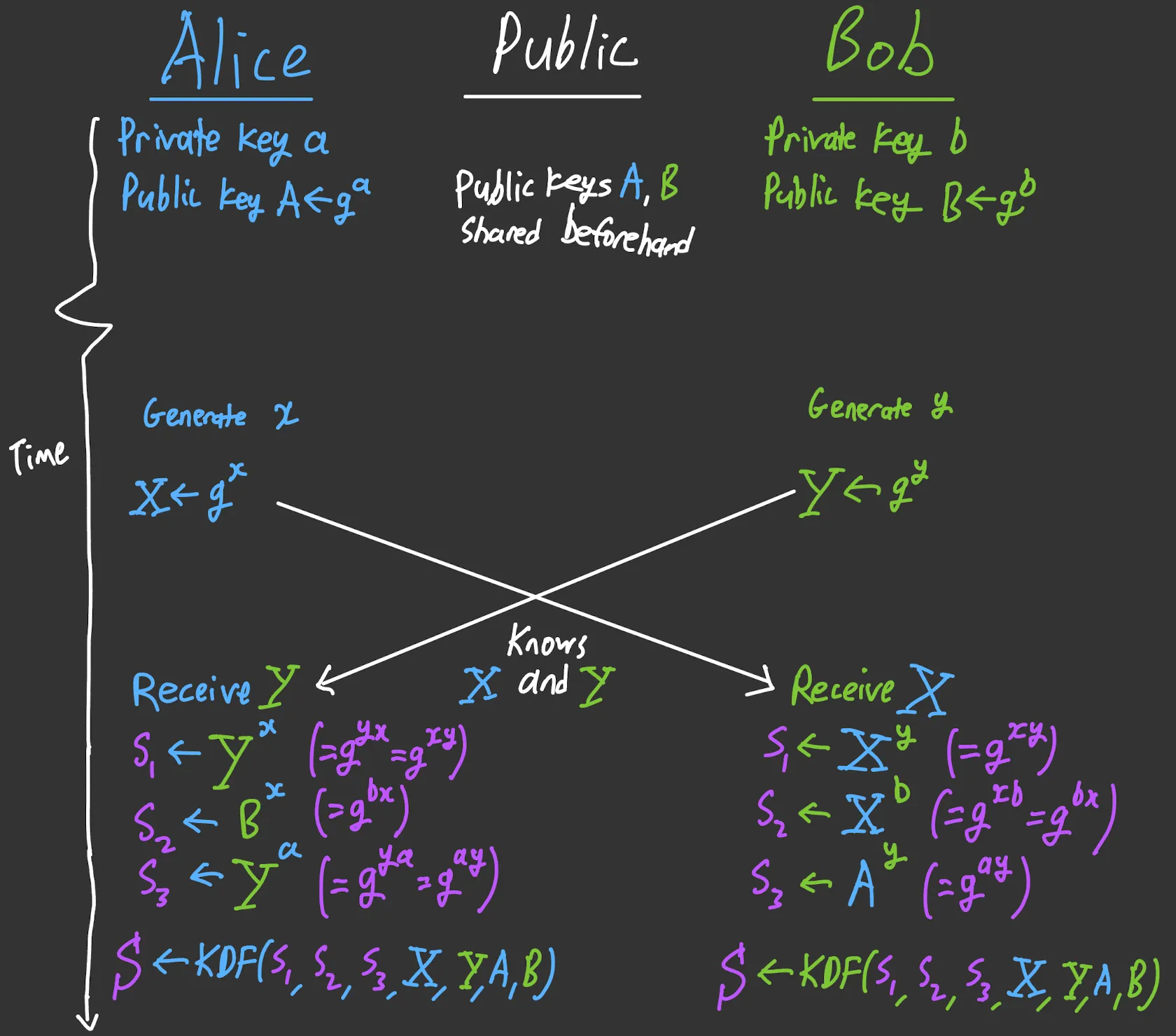

There are several solutions to this problem, such as the Station-to-Station protocol described in the previous blog post. Here we will use another solution — triple Diffie-Hellman (3DH). It is almost the same as regular DHKE, except that we introduce public keys into the mix: Alice has a private key $a$ and a public key $A = g^a$, and Bob has a private key $b$ with public key $B = g^b$. Let’s ignore how Alice and Bob share their public keys with each other beforehand³; how does the 3DH key exchange work?

1. Alice and Bob choose positive integers $x$ and $y$ respectively, called the secret keyshares.
2. Alice computes $X=g^x$ and sends it to Bob over the public channel. Bob computes $Y = g^y$ and sends it to Alice. The values $X$ and $Y$ are called the public keyshares.
3. Alice and Bob then compute the ‘shared values’ as follows.
   • The first shared value $s_1$ is akin to the DHKE shared value. Alice computes $Y^x$ and Bob computes $X^y$.
   • The second shared value $s_2$ checks if Bob can successfully prove that he is, indeed, Bob. While Alice computes $B^x$ using Bob’s public key, Bob has to use his private key $b$ to compute $X^b$. That way $B^x = (g^b)^x = g^{bx} = (g^x)^b = X^b$.
   • The third shared value $s_3$ is similar to the second, but now it’s Alice who needs to prove who she is. Alice computes $Y^a$ while Bob computes $A^y$; both sides are the same because $Y^a = (g^y)^a = g^{ay} = (g^a)^y = A^y$.
4. With all the shared values obtained, a Key Derivation Function (KDF) is used to ‘combine’ $s_1$, $s_2$, and $s_3$ alongside all public values $X$, $Y$, $A$, and $B$ into a single shared key⁴, say $S$.

Let’s look at a simple demonstration of a 3DH key exchange in Python. Here we use the multiplicative group of integers modulo 23 (i.e. $p = 23$) with the generator being $g = 5$. Note that a function call like pow(a, b, m) means $a^b \mod m$, i.e. raise $a$ to the power of $b$ modulo $m$.

In the end you can see that the dh1, dh2, and dh3 values are the same for Alice (on the left) and Bob (on the right). Note that 3DH successfully prevents a MiTM attack since Mallory can’t recover the private key of either Alice or Bob and impersonate them. In fact, 3DH is a bilaterally authenticated key exchange mechanism, allowing both sides to verify their identities and derive a common secret for encryption.

Obviously, 3DH doesn’t work with passwords. But what we want is a Password-Authenticated Key Exchange protocol! It’s fine for the server to keep using a private/public key construction, but how do we get the client to generate the private and public keys to use in 3DH from a password?

A fairly obvious approach would be just to take the user’s password, pass it through a KDF⁵ to generate the client’s private key $c$, and generate the public key $C = p^c$. We then send the public key to the server for use in 3DH. What’s wrong with this? Well, since the client public key is (by definition) public, anyone can see what $C = g^c$ is. A malicious attacker could record down the value of $C$, precompute all possible public keys, and then seeing which password matches. This rainbow table attack means that anyone who obtains the public key of the client (which is everyone) could try and crack the client’s password without first breaching the server.

What we want is to somehow make this key derivation process rely on a secret value that the server (and only the server) has. But the server can’t send this value to the client (as the channel is still not secure and thus could leak this secret value) and the client can’t send its password to the server for processing (as that’ll just leak the client’s password). We need a way to protect the client’s password, send it to the server to include its secret value, before sending it back to the client for use in a KDF.

What could we use to achieve this?

Introducing OPRFs! These functions help us solve the problem of trying to mix a server secret into the password-based key derivation process.

Before we look into the “oblivious” part of OPRFs, what is a Pseudorandom Function (PRF)? Essentially, a PRF looks like a function that generates random outputs, except that the same input generates the same output. Except, it is also fed a secret key (or seed) so that the outputs of the PRF are the same for the same inputs.

To put it more precisely,

A Pseudorandom Function (PRF) is a function $F$ taking a seed $s$ and input $x$ such that, for any $s$ chosen from a uniformly random distribution, the function $g(x) = F(s,x)$ is indistinguishable from a function sampling uniformly from the image of $F$.

In practice, encryption functions such as AES could be used as PRFs: just define $F(s,x) = \texttt{AES}_s(x)$ (where $s$ is the AES key) and you’ve got a PRF. However, that’s not how we are going to create an Oblivious PRF. For an OPRF, the seed is held by one party (e.g. the server) while the input is held by another (e.g., the client). So we can’t use the AES trick to compute the OPRF output as that’ll involve one party needing both the seed and the input. We need to do something cleverer.

Let’s go back to our good friend: the cyclic groups. Due to the Discrete Logarithm Problem, we know that finding $n$ given $g^n$ is hard. Assuming that we choose $n$ uniformly randomly, then $g^n$ would also be uniformly random. Also, if we make the size of the cyclic group a prime, we can utilise the following interesting fact⁶:

Let $\mathbb{Z}_p$ denote the set of integers $\{0, 1, 2, 3, \dots, p - 1\}$. Then for any non-zero $n \in \mathbb{Z}_p$ there exists $k \in \mathbb{Z}_p$, known as the multiplicative inverse of $n$, such that $nk = 1 \mod p$. We may abuse notation and write $n^{-1}$ to denote the multiplicative inverse of $n$.

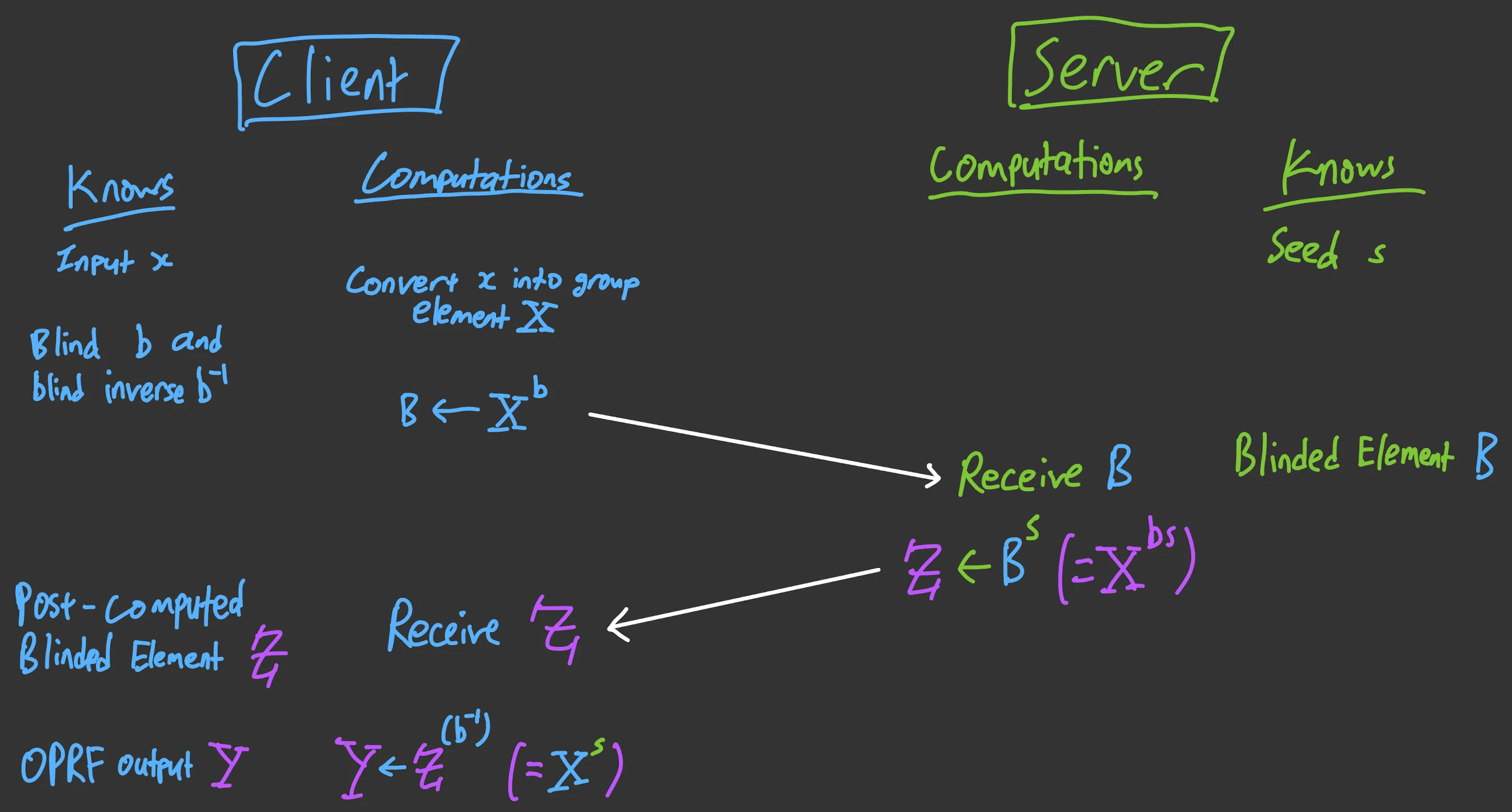

This insight allows us to conceptually create an OPRF with seed $s$ and input $x$ within a cyclic group of prime size as follows:

1. Convert $x$ into a group element $X$.
2. Randomly take a non-zero $b \in \mathbb{Z}_p$, called the blind.
3. Generate the blinded element $B = X^b$ and send it to the server.
4. On the server, assuming $s$ is an integer, compute $Z = B^s$ and send it back to the client. Note that $Z = (X^b)^s = X^{bs}$.
5. Unblind the blinded element by finding $b^{-1}$ and computing $Y = Z^{(b^{-1})}$. Note that $Y = X^{bs(b^{-1})} = X^s$. This $Y$ can then be converted into a more ‘suitable’ form (e.g., by converting $Y$ into bytes) for further processing.

Let’s see an OPRF in action using the group of integers under addition modulo 23. In such a group the standard notation like $X^b$ means $b \times X$ (i.e., $X$ multiplied by $b$). Let’s again use Python for demonstration; note that

• the expression randint(1, p-1) means to generate a random integer from 1 to $p-1$ inclusive;
• an expression like (b * x) % p means $(b \times x) \mod p$; and
• the expression pow(b, -1, p) is to find $b^{-1} \mod p$, i.e. the multiplicative inverse of $b$ modulo $p$.

In the end you can see that the client’s OPRF output is the same as someone who has both the OPRF input and seed.

Also observe that, throughout this process, the server never sees the input $x$ (or $X$) and the client never sees the seed $s$. Thus this is, in theory, an OPRF. In fact, this is largely how RFC9497 defines the OPRF on cyclic groups with a prime size (like the group of integers under addition modulo 23). Of course, there are some nuances to make this an actual, standard worthy OPRF, which are covered in the aforementioned RFC.

Now that we understand how the 3DH key exchange mechanism works and how an OPRF could be used to include a server secret into a key derivation operation, we can finally take a look at the OPAQUE protocol. Essentially, it is an aPAKE that uses an OPRF, hence the name OPAQUE⁷.

Remember how 3DH almost worked except for the part of generating client private/public keys? Now, with an OPRF, we can solve this problem! The core idea is simple:

1. Client converts password into a key, say $x$, using a KDF.
2. Use the OPRF to incorporate the server’s OPRF seed alongside $x$ to generate the new key $x'$.
3. Use $x'$ to generate the client’s private key $c$ and public key $C = g^c$.
4. Perform 3DH key exchange, bilaterally authenticating each party.
5. Use derived shared key to encrypt communications.

This is almost everything that is in OPAQUE, except that we still have to solve two problems:

• How does the server get the client’s public key?
• How does the client get the server’s public key?

The first problem is solvable if we send the client’s public key during registration⁸, but the second isn’t so simple. Remember, the throughout the entire authentication process, the client and server are talking in an insecure channel. That means that if the server sends its public key to the client in the clear, a malicious actor could swap out that public key with their own. The solution is to use a masking key that allows the client and server to encrypt the server public key. This masking key is based off the OPRF output and is sent to the server during registration alongside the client’s public key.

Let’s walk through how the OPAQUE login flow works in its entirety. Suppose our Carol is the client and our Steve is the server. They agree to use a cyclic group of prime size⁹ with generator $g$ and to use the 3DH key exchange mechanism. This means that they are using the OPAQUE-3DH protocol. How does Carol log in?

Carol first passes her password into a special cryptographic hash function that converts her password into a group element, say $P$. We now generate the OPRF blind $b$ and get $B = P^b$ as our blinded element¹⁰. Then a cryptographic nonce for Carol, $n_c$, as well as the 3DH keyshares $x$ and $X = g^x$ are generated. We’ll see what $n_c$ is used for in a while, but for now just understand that it is a number that should never be used more than once (i.e., it should not be repeated in another login attempt).

Carol sends the blinded password $B$, her nonce $n_c$, and her public keyshare $X$ to Steve in a structure called KE1 (Key Exchange 1). Now because Steve also needs to correctly retrieve Carol’s public key $C$ and masking key from his own records, thus Carol also needs to send her username to Steve alongside KE1.

Steve receives Carol’s KE1 message and her username. He uses her username to retrieve her registration record, which includes Carol’s public key $C$, masking key, and an envelope containing a nonce $n_e$ and a Message Authentication Code (MAC) (or authentication tag) $m_e$. What’s this MAC used for? Well, it is to ensure that Carol’s public key $C$, masking key, and the envelope itself has not changed during storage. Later, this MAC will also be used to check whether Carol provided the correct password, but more on that in a bit.

Like with Carol, Steve also generates a random nonce $n_s$ alongside his 3DH keyshares $y$ and $Y = g^y$. Now Steve already has his own private key $s$ and public key $S = p^s$, so he can already complete the 3DH key exchange on his end. He computes $\texttt{dh}_1 = X^y$, $\texttt{dh}_2 = X^s$, and $\texttt{dh}_3 = C^y$, using them to generate the session key $K$ as well as two MACs: a server MAC $m_s$ and an expected client MAC $m_c'$.

But Carol still needs the output of the OPRF to complete her side of the key exchange! Steve has the OPRF seed, but has not applied it to the blinded password yet. He thus transforms that seed into a key using a KDF and then uses it to evaluate the blinded password $B$, obtaining $Z = B^{\texttt{OPRFkey}}$.

Steve is almost ready to send these values back to Carol, but he also needs to send his public key $S$ to Carol. But remember how that the channel is still insecure? Thus, Steve needs to use the masking key stored in the registration record of Carol and a masking nonce $n_m$ to encrypt¹¹ of $S$ as well as the envelope. Providing the public key $S$ and the envelope to Carol allows her to check if (a) her password is correct and (b) whether Steve has the correct envelope (or if someone is pretending to be Steve).

So, at the end of all that, Steve bundles the evaluated blind $Z$, the masking nonce $n_m$, and the encrypted $S$ and envelope into a CredentialResponse structure, and packs the server nonce $n_s$, his public keyshare $Y$, and server MAC $m_s$ into a AuthResponse structure. These two structures are bundled together and sent to Carol as the KE2 message.

Now, back to Carol. She receives the KE2 message from Steve and unpacks it.

The first thing she does is to take the evaluated blind $Z$ and unblind it. As previously discussed, this is done by finding the multiplicative inverse of the blind (i.e., $b^{-1}$) and then computing $Z^{(b^{-1})}$ , since

The OPRF output, $P^{\texttt{OPRFkey}}$, is used as input to a KDF to generate a random password. This random password is the aforementioned output of the OPRF that was used to create the masking key, which Carol can now obtain. So she can use that key to recover Steve’s public key $S$ as well as the envelope from the CredentialResponse in the KE2 message. Typically, now Carol would check if $S$, along with the envelope, produces the same envelope MAC $m_e$ as what was found in the envelope itself. If not, it might be the case that Carol got her password wrong.

Assuming it is correct, this random password is also used to (re)generate the client private key $c$ and client public key $C = g^c$. She can now complete the 3DH key exchange on her end by computing $\texttt{dh}_1 = Y^x$, $\texttt{dh}_2 = S^x$, and $\texttt{dh}_3 = Y^c$, using them to generate the session key $K$, the expected server MAC $m_s'$, and the client MAC $m_c$. Carol checks Steve’s server MAC $m_s$ against her own $m_s'$ and verifies that they are the same. If it is, she sends Steve her client MAC $m_c$ as the KE3 message.

At this point, Carol has completed authenticating Steve and is ready to begin encrypted communications using the session key $K$. However, Steve still needs to do one more thing.

Steve receives Carol’s client MAC $m_c$ and compares it with his expected MAC $m_c'$. If they do not match, he drops the connection. Otherwise, he would have verified Carol’s identity and can begin encrypted communications using the same session key $K$.

Phew! That was a lot. As you can see, the OPAQUE protocol is quite dense. But understanding the two main aspects of OPAQUE, namely the key exchange mechanism and the inclusion of server secrets into the password-based key derivation process, it becomes more manageable and understandable as a whole.

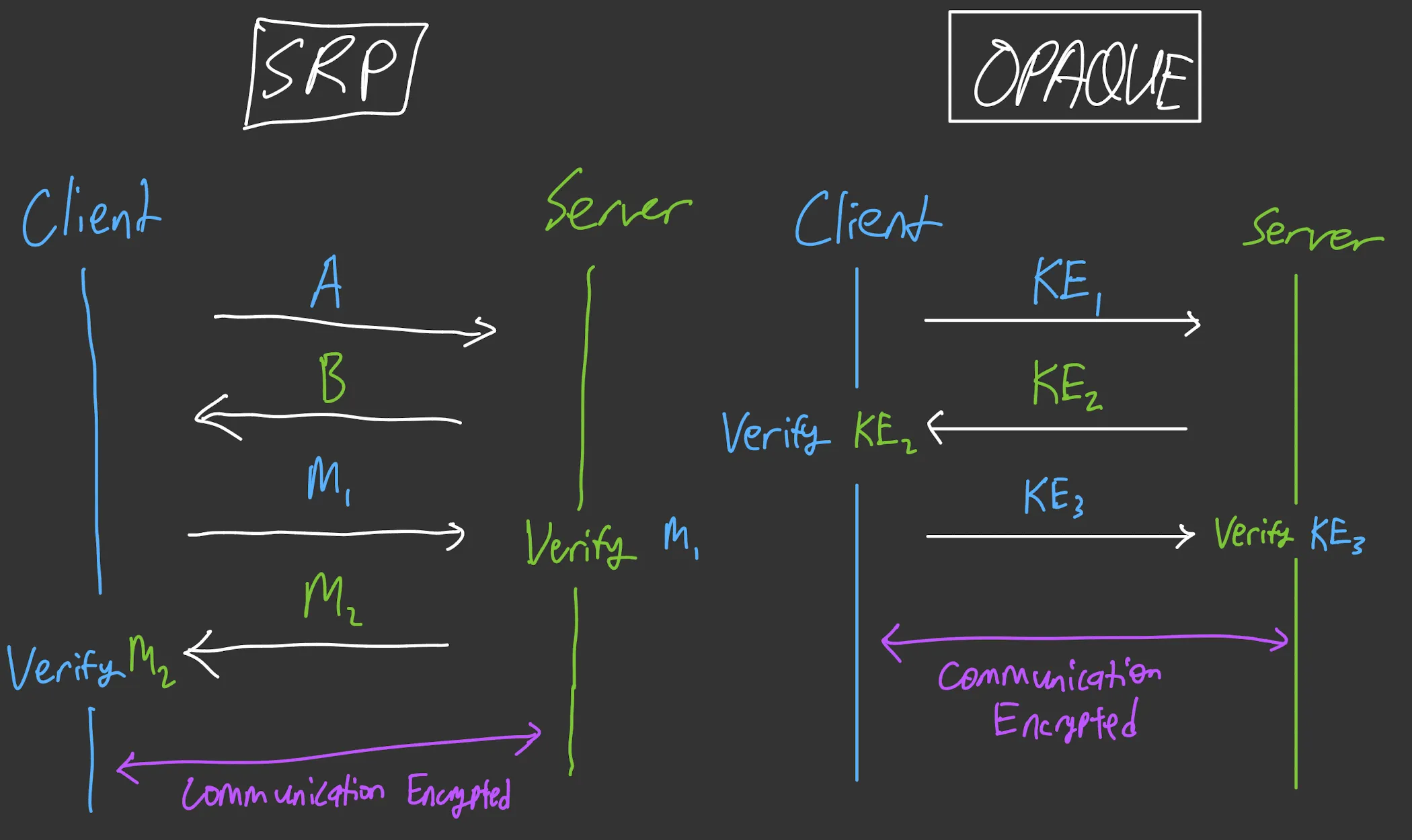

An obvious surface-level improvement of OPAQUE is that it takes less round trips than SRP, as seen in the diagram below.

Another improvement that OPAQUE has over SRP is that it is very modular. OPAQUE is made up of two main components: the key exchange mechanism and the OPRF. In RFC9807, they specified 3DH as the key exchange mechanism and the cyclic group-based OPRF as the OPRF implementation. But these can be swapped out for others!

An exciting opportunity is to implement a post-quantum secure OPAQUE protocol by swapping out the key exchange mechanism and the OPRF with ones that are post-quantum secure. So far, the National Institute of Standards and Technology (NIST) have standardized several post-quantum cryptographic protocols, including a module lattice-based key encapsulation mechanism in FIPS203 which, when paired with the corresponding digital signature algorithm in FIPS204, could replace 3DH as a post-quantum secure key exchange mechanism. A post-quantum secure OPRF remains elusive, though. But the modularity of OPAQUE means that, when a post-quantum OPRF become provably secure, they can be swapped with the existing OPRF to make a fully post-quantum secure aPAKE protocol built upon OPAQUE.

No artificial intelligence technologies or tools were used in the creation of this blog post.
